Comparison · Backhoe loader

JCB 3CX vs JCB 4CX

The JCB 4CX is about 7% heavier than the JCB 3CX (9,000 vs 8,400 kg), which usually means more stability and lifting capacity but higher transport weight.

The JCB 4CX has about 19% more engine power (81 kW (109 hp) vs 68 kW (91 hp)).

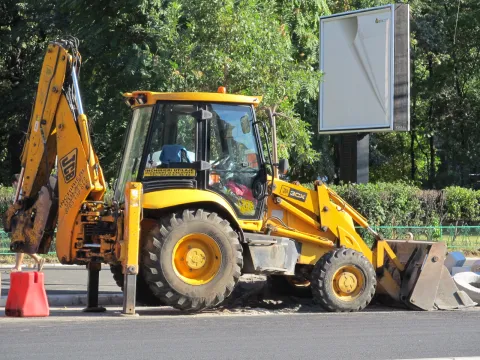

JCB 3CX backhoe loader standing on its stabilisers
JCB JCB 3CX

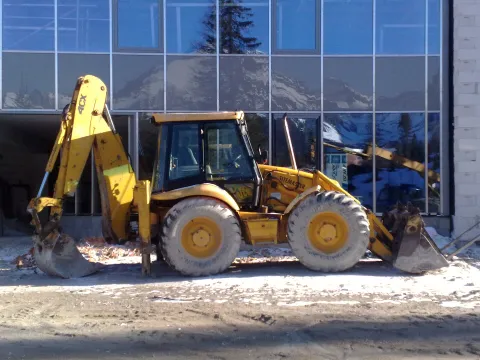

JCB 4CX Sitemaster backhoe loader
JCB JCB 4CX
Operating weight 8,400 kg (18,500 lb)9,000 kg (19,800 lb)
Engine power 68 kW (91 hp)81 kW (109 hp)
Engine power ≈55–81 kW (74–109 hp), by version≈81 kW (109 hp)
Max. digging depth ≈5.9 m (19 ft 4 in) with extending dipper≈5.9 m (19 ft 4 in) with extending dipper
Engine JCB DieselMax 448—
Loader bucket ≈1.0–1.3 m³ (1.3–1.7 yd³)—
Top speed ≈40 km/h (25 mph)—
Steering —2WS / 4WS / crab
Strengths
  • + Proven design and huge parts availability
  • + Side-shift option for work against walls
  • + Strong resale, especially in Europe and India
  • + Equal wheels give superior traction
  • + Crab steer for tight sites
  • + High loader capacity
Watch-outs
  • − Equal-wheel 4WS versions cost considerably more
  • − Some versions have a smaller loader bucket than US rivals
  • − More expensive than the 3CX
Full 3CX reviewFull 4CX review

Specifications are typical figures for standard configurations and may be measured differently by each manufacturer (for example net vs gross power). Always confirm with the manufacturer or dealer. Build another comparison.
