Volvo L350H
Volvo’s largest wheel loader
The Volvo L350H is a 50–56 tonne quarry loader with a 16-litre Volvo D16J (395 kW / 530 hp net), 450 kN breakout and 34.7 t tipping load. The updated model promises up to 10% more productivity and up to 15% more fuel efficiency. Specs, rivals and buying advice.

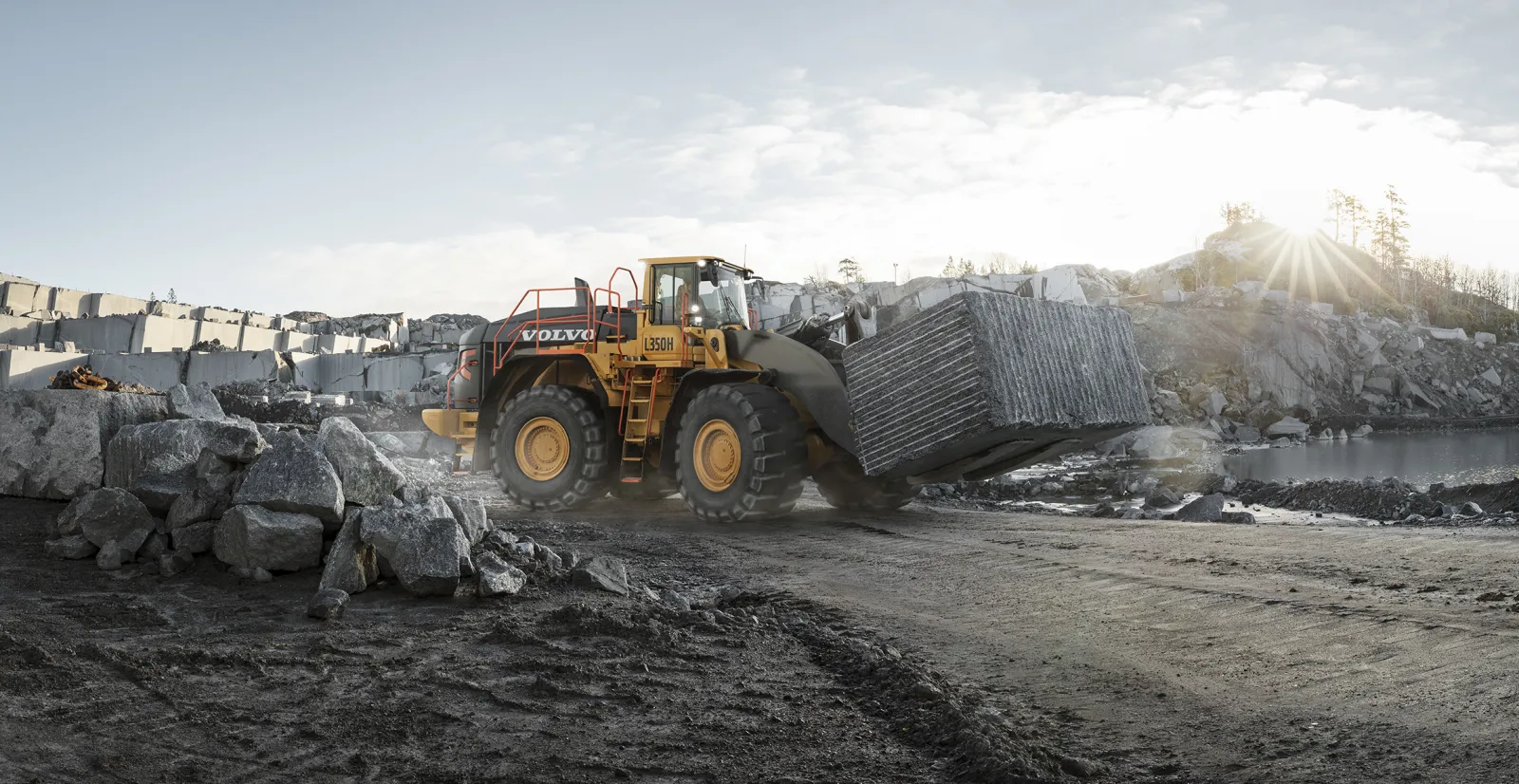

Photo: Volvo Construction Equipment (volvoce.com)
On this page (11 sections) ↓
+Strengths
- Up to 10% more productivity and 15% more fuel efficiency (Volvo, updated model)
- Massive 450 kN breakout
- Up to 10% faster cycles with new cylinders and higher pressure
- Lower service costs than predecessor (Volvo)
−Watch-outs
- Heavy transport and high purchase cost
- Needs quarry-scale volumes
The Volvo L350H in 30 seconds
- What it is: Volvo's largest wheel loader, 50–56 tonnes.
- Engine: Volvo D16J, 395 kW (530 hp) net, 2,547 N·m.
- Headline numbers: 450 kN breakout, 34.7 t tipping load, 6.2–12.7 m³ buckets.
- Why buy it: quarry face productivity with improved fuel efficiency in the latest version.
Overview
Volvo traces the L350H's lineage back to the L320 of 1985. The new L350H builds on its predecessor with, according to Volvo, up to 10% more productivity and up to 15% more fuel efficiency, plus significantly lower service costs. Upgrades include more responsive hydraulics with new lift and tilt cylinders and higher working pressure (up to 10% faster cycles), new Volvo axles and an all-new Volvo transmission. The proven Z-bar lift arm has double sealing on each pin and a reinforced upper centre hinge.
The Volvo H-Series wheel loader range at a glance
Volvo built its first wheel loader, the H10, in Sweden in 1954. Figures from Volvo's official specifications for the models in our database:
| Model | Operating weight | Net power | Bucket range | Breakout force |
|---|---|---|---|---|
| Volvo L60H | 11.0–13.6 t | ≈124 kW (166 hp) | 1.6–5.0 m³ | 84.9 kN |
| Volvo L90H | 14.5–17.3 t | 137 kW (184 hp) | 2.2–7.0 m³ | 140 kN |
| Volvo L120H | 19.0–21.6 t | 203 kW (272 hp) | 2.6–9.5 m³ | 170 kN |
| Volvo L150H | 24.1–25.6 t | 223 kW (299 hp) | 3.4–14 m³ | 201 kN |
| Volvo L220H | 31.2–33.1 t | 279 kW (374 hp) | 4.3–16 m³ | 245 kN |
| Volvo L350H | 50.0–56.3 t | 395 kW (530 hp) | 6.2–12.7 m³ | 450 kN |
Note: the largest bucket figures include light-material buckets for wood chips, snow and similar materials.
Performance
- Breakout: 450 kN
- Full-turn tipping load: 34,700 kg
- Buckets: 6.2–12.7 m³
Typical applications
Quarry face loading into 40–60 t haulers, overburden, large stockpiles, steel mills and heavy industry.
L350H vs rivals
| Rival | Comparison |
|---|---|
| Cat 988 | 51 t, 538 hp, Cat 770–775 match |
| Komatsu WA600-8 | 55–57.5 t, 529 hp |
| Liebherr L 586 XPower | Lighter power-split |
| Volvo L220H | Smaller sibling |
Buying tips
Confirm whether it is the original or updated L350H; check structures, axles, transmission, hydraulics and tyres; review CareTrack data. See how to buy a used wheel loader.
Verdict
A powerful, increasingly efficient quarry loader with decades of Volvo heritage.
Volvo L350H specifications
Key figures
| Operating weight | 50,000–56,300 kg (110,230–124,120 lb) |
|---|---|
| Net power (ISO 9249) | 395 kW (530 hp) at 1,700–1,800 rpm |
| Max. torque | 2,547 N·m (1,879 lbf·ft) at 1,400 rpm |
| Bucket capacity | 6.2–12.7 m³ (8.1–16.6 yd³) |
| Breakout force | 450 kN (101,160 lbf) |
| Static tipping load, full turn | 34,700 kg (76,500 lb) |
Engine and drivetrain
| Engine | Volvo D16J, 16 L |
|---|---|
| Transmission and axles | All-new Volvo transmission, new Volvo axles (updated model) |
| Lift arm | Z-bar with double sealing on each pin; reinforced upper centre hinge |
| Tyres | 35/65 R33, 875/65 R33 |
Figures are typical for standard configurations as published by Volvo Construction Equipment. Values vary by market, emissions tier, attachments and options; confirm with your dealer before purchase, transport or lifting.
Volvo L350H vs rivals: specs side by side
Headline figures for standard configurations; “—” means the figure is not listed in our database.
| Specification | Volvo L350H | Caterpillar 988 | Komatsu WA600-8 | Liebherr L 586 XPower | Volvo L220H |
|---|---|---|---|---|---|
| Type | Wheel loader | Wheel loader | Wheel loader | Wheel loader | Wheel loader |
| Operating weight | 50,000–56,300 kg (110,230–124,120 lb) | 51,063 kg (112,574 lb) | 55,400–57,501 kg (122,136–126,768 lb) | 32,600–33,700 kg (71,870–74,300 lb) | 31,200–33,100 kg (68,780–72,970 lb) |
| Net power (ISO 9249) | 395 kW (530 hp) at 1,700–1,800 rpm | 401 kW (538 hp) | 394 kW (529 hp) | 260 kW (354 hp) | 279 kW (374 hp) at 1,300–1,400 rpm |
| Max. torque | 2,547 N·m (1,879 lbf·ft) | — | — | — | 2,265 N·m (1,670 lbf·ft) |
| Bucket capacity | 6.2–12.7 m³ (8.1–16.6 yd³) | 4.7–13 m³ (6.2–17 yd³) | 6.4–7.8 m³ (8.4–10.2 yd³) | 5.5–8.5 m³ (7.2–11.1 yd³) | 4.3–16 m³ |
| Breakout force | 450 kN (101,160 lbf) | — | — | — | 245 kN (55,080 lbf) |
| Static tipping load, full turn | 34,700 kg (76,500 lb) | — | — | — | 21,000 kg (46,300 lb) |
| Engine | Volvo D16J, 16 L | — | Komatsu SAA6D170E-7 | — | Volvo D13J, 13 L |
| Tyres | 35/65 R33, 875/65 R33 | — | — | — | 29.5 R25, 875/65 R29 |
Volvo L350H videos
Walkarounds and demonstrations from the manufacturer and independent channels. Videos load from YouTube only when you press play.
Frequently asked questions
How much does a Volvo L350H weigh?
50,000–56,300 kg depending on configuration.
What engine does the Volvo L350H use?
A 16-litre Volvo D16J rated at 395 kW (530 hp) net.
What is the Volvo L350H breakout force?
450 kN.
What changed in the new L350H?
Volvo cites up to 10% more productivity, up to 15% better fuel efficiency, new axles and transmission, and faster hydraulics.
